nineball playfield swap

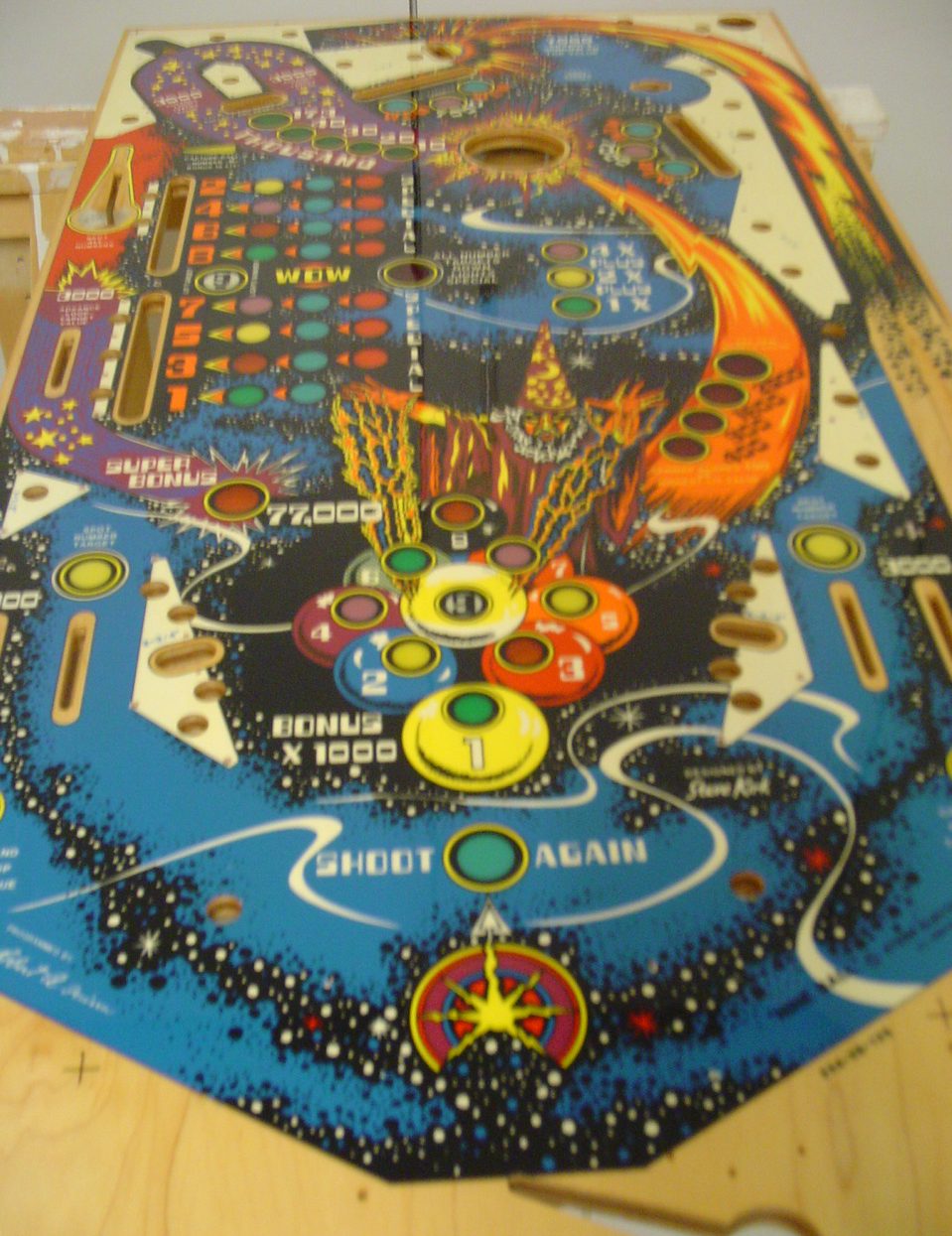

Here is the nos nineball playfield after clearcoating...

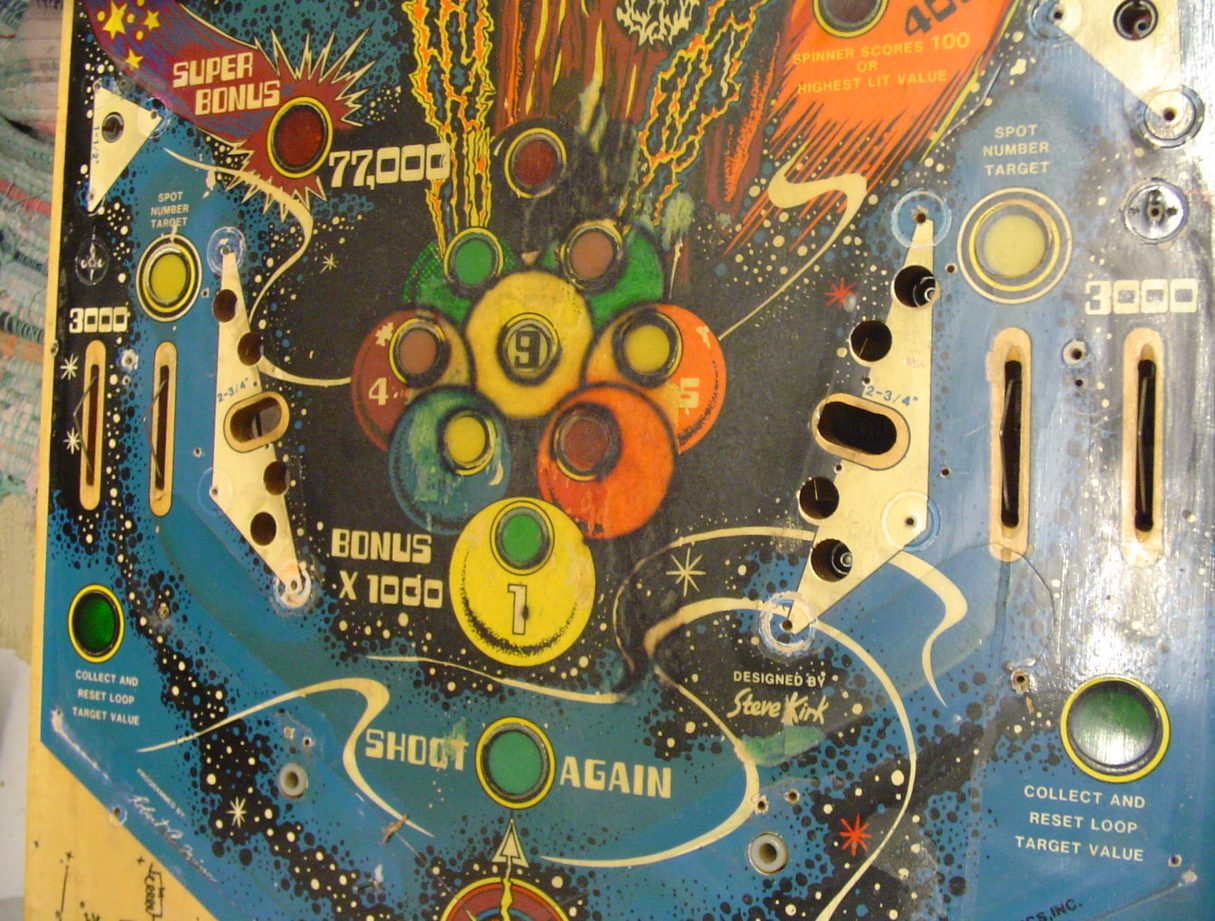

And here is the old one...
I have to drill holes for the border, I used a 3 mm drill.

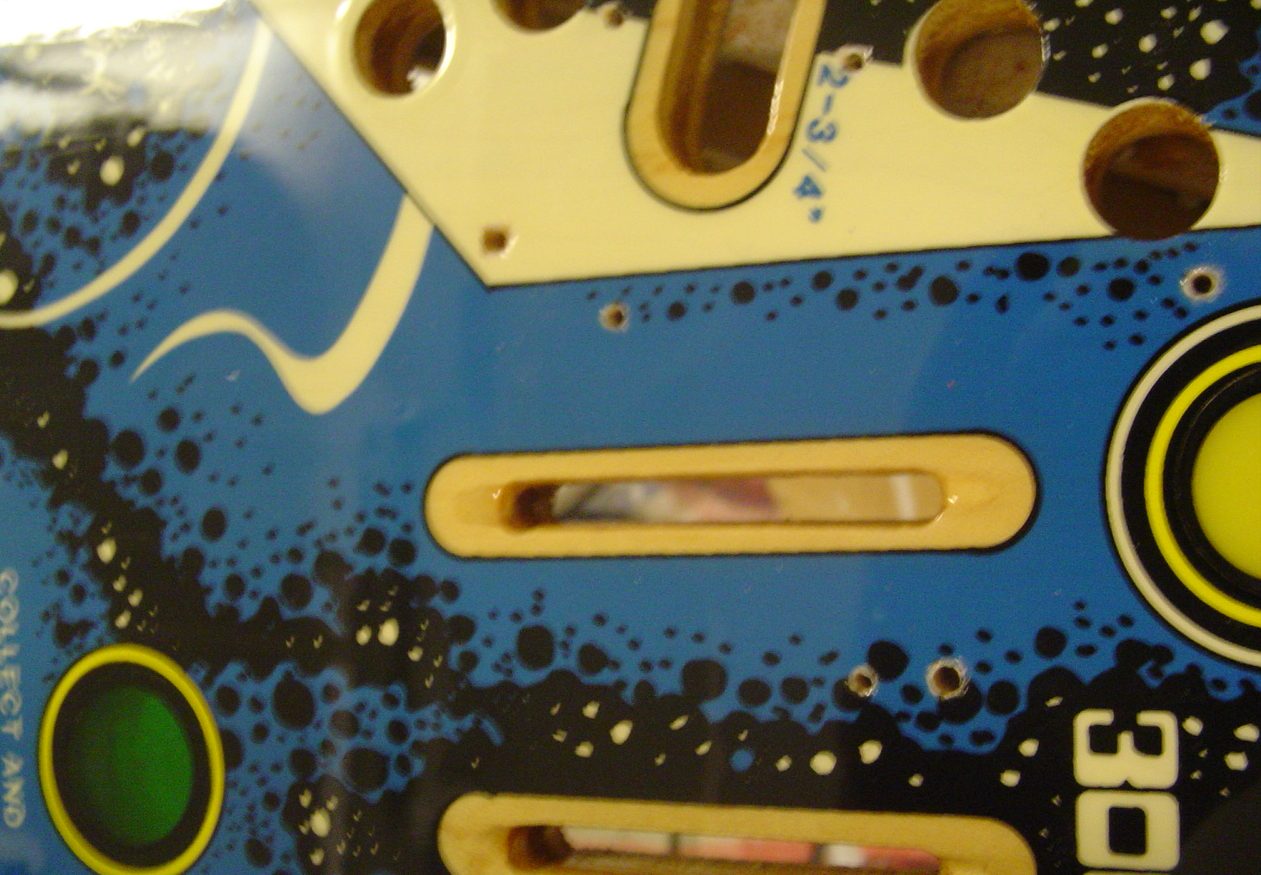

I drilled the holes for the shooterlane border from the upper side.
No hole was drilled for the metal lanes, so I built a template...
Nothing more than a piece of paper....
I used a pencil to mark the holes...
Then I pushed a nail through the paper to mark the holes...
Then I mounted the piece of paper on the new playfield and I drilled the holes through the paper. For the metal lanes I used a 2.1 mm drill. For the metal post screws I used a 3 mm drill. For the metal nails (to hold the red star posts) I used a 3.5 mm drill...
This side is almost done...
Let us work on the other playfield side...
The previous owner made an intresting modification to the drop targets...
One memory coil was burned...

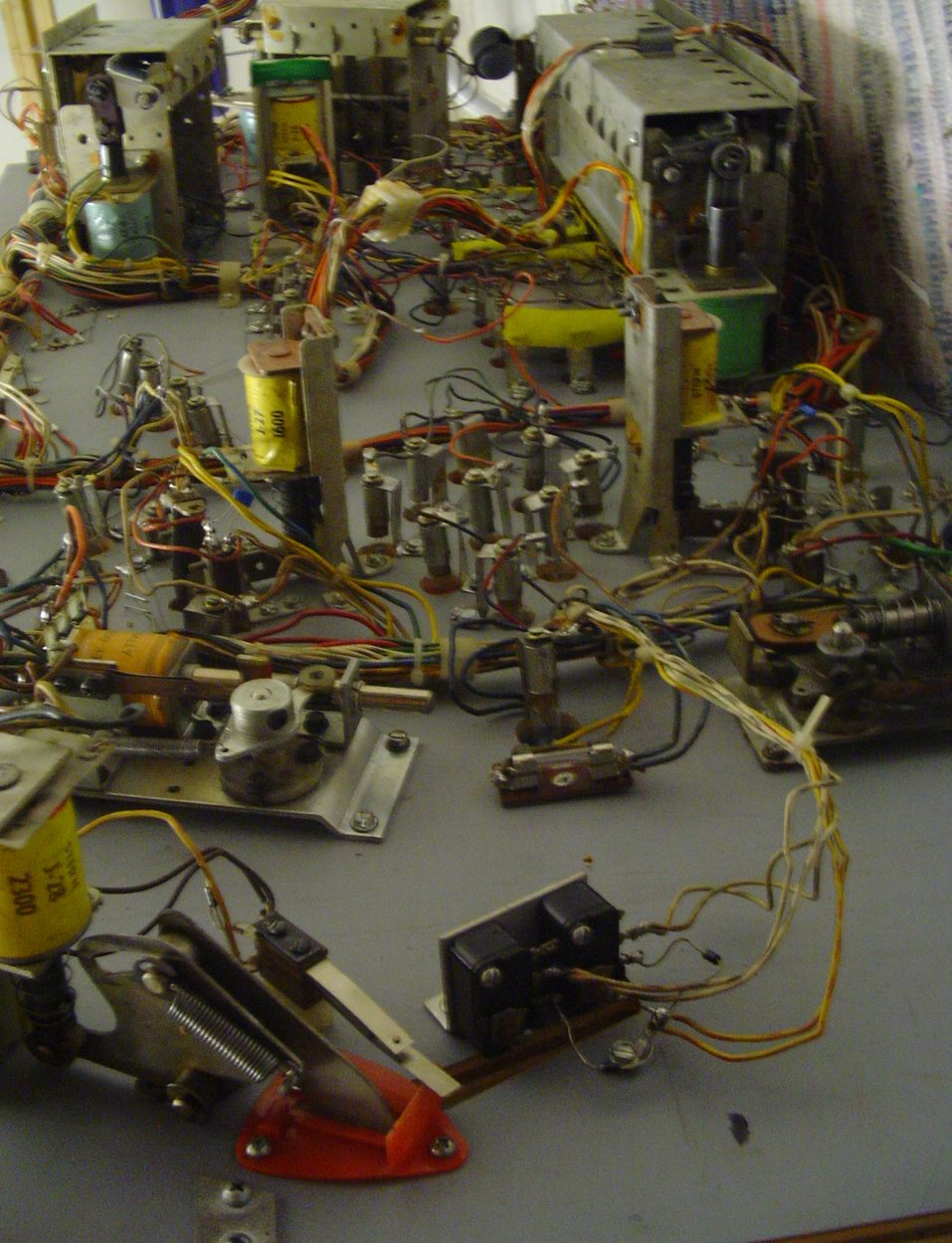

Half of the job is done...
Everything ready...

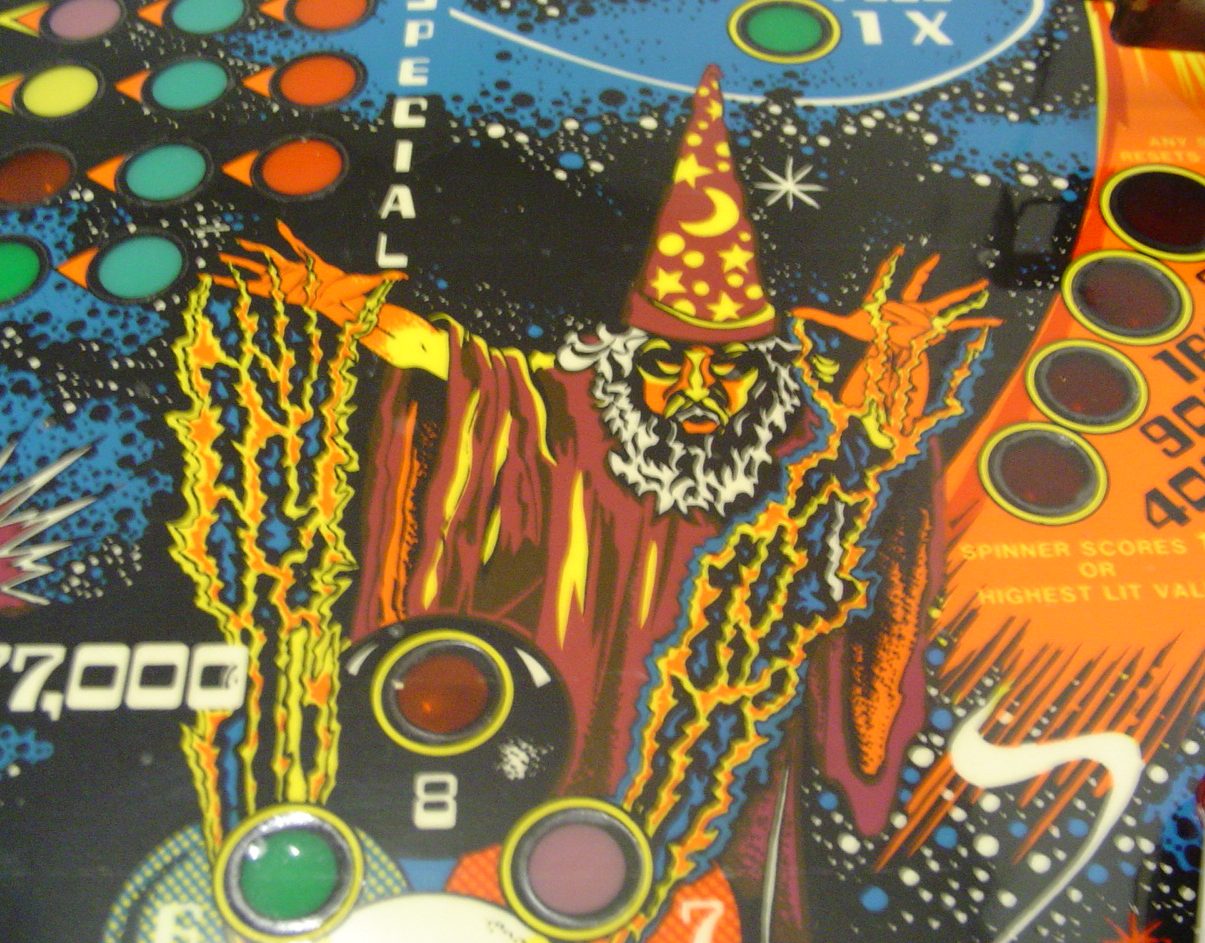

Here are some pictures...
